CNC Dot Pin Basic

CNC Dot Pin Basic
CNC Dot Pin Basic
Product Code : 10
Product Description

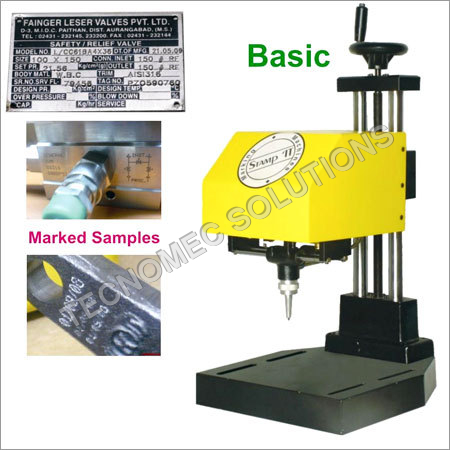

CNC Dot Pin Basic

We bring forth for our clients a large array of CNC Dot Pin Basic which is used for Marking on Name plates and metallic / non-metallic components. Designed as per the set industrial parameters using high grade raw materials, these are rigid in construction, compact in size and offer flawless performance. At affordable prices, these CNC Dot Pin Basic can be availed in varied standards and customized specifications.


Model Basic
(2 axis Pneumatically operated PC based CNC marking machine):

Marking Possibilities - Marking Area - 100 x 100 mm; Daylight - 300 mm; Linear, Angular, Circular, Inverted, Mirrored marking possible; Available Fonts - Continuous / Dot Matrix; Character height - 0.50 to 99.9 mm in steps of 0.1 mm; Marks Date Codes, Serial Numbers, Lot Numbers, Shift Codes, Logos etc. Output of Barcode Scanner can be marked directly.

Software Features - Operates to Windows standards, Pull Down Menus, Hot Keys, Toolbar & Status-bar, Unlimited Storage of designs, User-friendly interface, Graphic display (What you see is what you get), Physical JOG to locate marking position.

Marking Applications - Marking on Name plates, metallic / non-metallic components like Valves, Chassis numbers, Cookware, Crank shafts, Engine numbers .

Options  Force codes for different depth settings, Pneumatic/ Stepper controlled Z axis, Name plate holding  fixture, Additional I/O's for integration.

Price (Taxes extra) - Rs.

Controller (optional) for CNC marking machine (pl. see Portable m/c page also):
Comes with a dedicated controller to run the CNC machine with a LCD display & also interfaces with the PC so that the user can take advantage of the Graphic Capabilities of the Software.
