Roll Marking Machines With extensive domain experience, we are capable in offering our clients a large array of Roll Marking Machines which is extensively used to mark various specifications in the rolls. Our machines are made using premium quality raw material procured from the reliable sources of the industry. These are recognized across the globe for their efficient performance, durable finish standards, hassle free operation and longer service life. Clients can buy these Roll Marking Machines from us at pocket friendly prices.

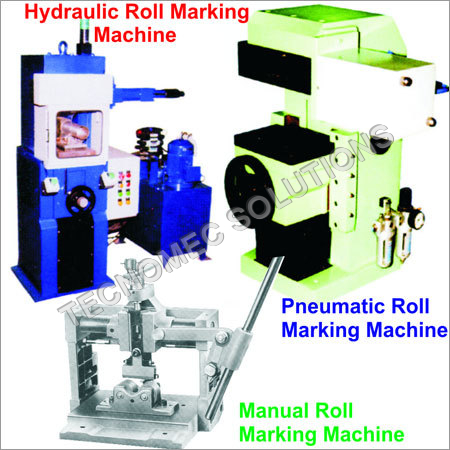

Hydraulic Roll Marking Machine:
- Marking Capacity: 8 lines of 3 mm characters in Mild Steel
- Main Slide Stroke: 100 mm
- Daylight: 350 mm
- Table Size: 250 x 200 mm
- Floor Area: 2000 x 2000 mm
- Height: 1500 mm
- Weight: 850 Kgs.
- Motor: 3HP, 1500 rpm, 440V, 3-Phase, 50 Cycles
- Weight: 10 litres / min.
Price (Taxes extra) - Rs.
Pneumatic Roll Marking Machine:
- Marking Capacity: 3 lines of 3 mm characters in Mild Steel
- Main Slide Stroke: 75 mm
- Daylight: 120 mm
- Table Size: 200 x 250 mm
- Floor Area: 1000 x 1000 mm
- Height: 700 mm
- Weight: 500 Kgs.
- Air Pressure required: 5 Kg / cm2.
Price (Taxes extra) - Rs.
Manual Roll Marking Machine:
- Marking Capacity: 1 line of 3 mm characters in Mild Steel
- Main Slide Stroke: 75 mm
- Daylight: 80 / 120 mm
- Foot Print: 200 x 300 mm
- Height: 150 mm
- Weight: 25 / 40 Kgs.
Price (Taxes extra) - Rs.
|
